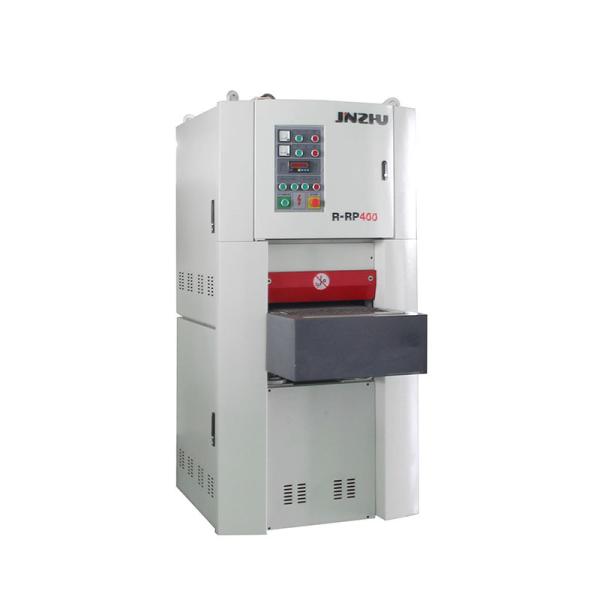

    Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine

    Ask Lasest Price
    Brand Name : JINZHU
    Model Number : JZGM400
    Certification : CE ISO
    Price : $6,620.00/sets 1-4 sets
    • Product Details
    • Company Profile

    Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine


    Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine


    Specification

    Product Description

    It is widely used in flat panels and various hardware panels for surface sand-drawing treatment. The
    machine is divided into two types: dry grinding and water grinding. There are models of 400mm, 630mm,
    1000mm, 1500mm and other specifications. The working grinding heads are also divided into single
    group, double group and multiple groups. Customers can choose according to process and needs.

    Packaging & Shipping

    Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing MachineStainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine

    Detailed Images

    Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing MachineStainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine

    Specification

    Specification
    1. Voltage 380V-50hz
    2. Main Power 5.5kw
    3. Total power 14.12kw
    4. Abrasive belt line speed 20m/s
    5. Lifting motor 0.37kw
    6. Conveying motor 0.75kw
    7. Consumable specifications 1700*420mm
    8. Lifting stroke of worktable 120mm
    9. air press 0.55MPa
    10. Processing range W:10~400mm H:0.5~110mm
    11. Conveyor belt size 2600*400mm
    12. Installation size 1600*800*1800mm L*W*H


    Our Services

    Warranty period

    All of our machine is equipped with 1 year warranty period, if there are any problem in operating it, please kindly feel free to contact us, our after-sale servicer will do their best to solve your problem.


    Company Information

    About us


    Since 2006, we produce automatic machines for polishing, buffing, grinding, wire drawing metal surfaces(rotary table, sheet, pipe,tube,oddly-shaped material and so on), processing metal such as SS, iron, brass, zinc,and aluminum. The final effect can be straight grain, round & circle grain, No.4, hairline effect and so on for grinding machine, ans smooth, satin finishing, mirror finishing, 8K mirror finshing effect for polishing machine.
