    8 Grinding head steel coil double sided polishing machine

    item: 360 degree conveyor Door Handle Polishing Machine, room fittings polishing machine

    main features:


    Form a complete set of six groups of double column rotate 360 degrees polishing head, and two groups of vertical polishing rotate 360 degrees. About 80 artifacts can be installed at the same time, greatly improve production efficiency.


    main parameters:
    1name360 degree automatic door handle polishing machine
    2modelJZ-L8888
    3machine size9600*700*1100mm
    4polishing head size1200*800*2000mm
    5main motor4kw, 1400r/m
    6conveyor motor4-class 1.5kw SIEMENS
    7polishing head rotation motor4-0.75kw*8pcs Taiwan
    8spindle speed2300r/m
    9up/down motor4-0.7kw*8pcs Taiwan
    10forward and backward motor4-0.37kw*8pcs Taiwan
    11polishing head up/down distance500mm
    12feed distance350mm
    13polishing diameter can up to500mm
    14polishing waxwith automatic spray wax device
    15main electric parts and PLCsiemens
    16voltage380v-50HZ
    17weight3000kg
    18max process size230*150*160mm

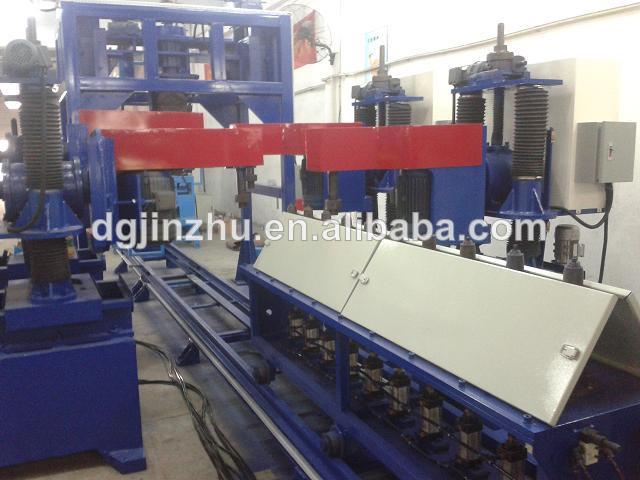

    door handle polishing machine detail.jpg

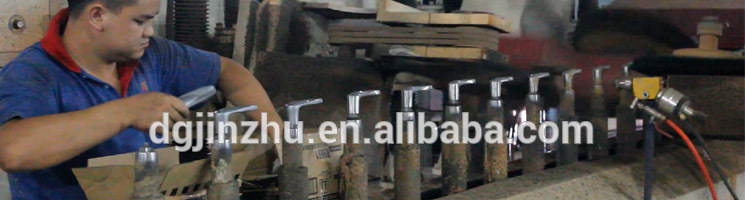

    door handle polishing machine working.jpg
    the door handle polishing machine mainly use for the door handle polishing, the effect of the polishing as follow:

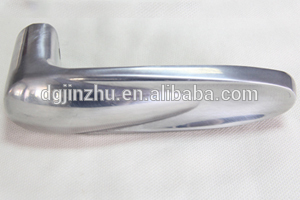

    door handle before polishing.jpg door handle after polishing.jpg
    can use for varieties of door handles
    varieties of door handle.jpg
    packaging & shipping
    the door handle polishing machine will be packaged in wooden case or container, and will be shipped in 20-30 days.
    polihsing machine.jpg
    our services:
    • One year free maintenance
    • Pre-service training free of charge
    • Lifelong technical support
    Company information:
    Dongguan Jinzhu Machine Equipment Co.,Ltd is manufacturing the polishing machine, grinding machine, cnc metal spinning machine and for more than 10 years.
    company introduction.jpg
    pipe polishing machine.jpg
    our customer:
    Company Location:
    Any Comments, please feel free to contact me. thank you.
