Cheap CNC Metal Spinning Forming Machine in Spinning Machinery
Item: cnc metal spinning machine
Product Description
this cnc metal spinning machine main use for the circle diameter
less than 300mm.
preformance introduction:
1. light, smart, practical, efficient, stable size of finished
product.
2. adopt advances digital process control system, program is easy
to learn and use.
3. excellently complete disk-shaped, cone type, cylindrical,
parabolic and horn type products.
4. function of flanging, trimming, curling.
5. whole processing of LED aluminum cup, reflector, reflex
cover,excellent ergent performance after forming.conv
6. cycle time 10 seconds.
7. skilled operator not required, one can operate multiple machines
at the same time.
Technical parameter:
Aluminum circle diameter | Max Φ300mm |
Aluminum circle height | 0.4-2.0mm |
Iron circle height | 0.4-1.2mm |
Product height | Max 200mm |
Equipment body | Take HT300 annealing |
Engine base | 5mm steel plate welded and rust prevention |
Main motor power | AC frequency convension motor 3.5kw |
Frequency converter | BMD-A-037K43G AC380V3.7KW/5HP |
Spindle speed | 10-3000 RPM |

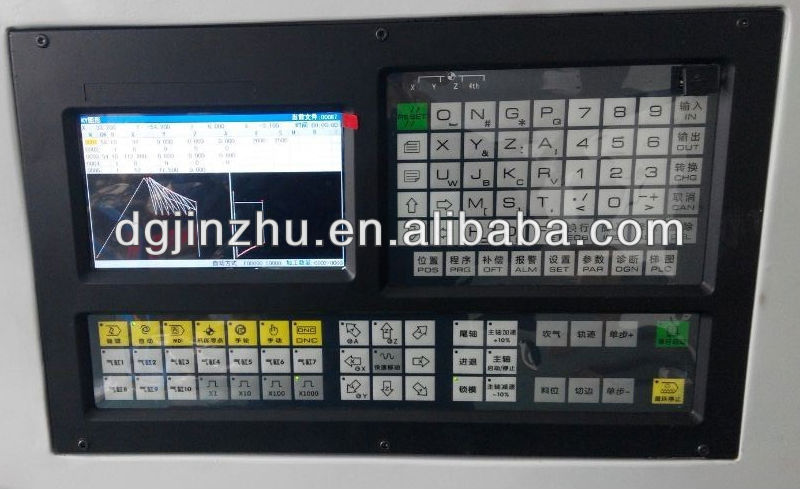

Control system | microcomputer spinning control system(hand teaching) |
X axis control motor | Delta ASDA-B2 AC220V 750W Servo Motor |
Y axis control motor | Delta ASDA-B2 AC220V 750W Servo Motor |
Z axis control motor | Delta ASDA-B2 AC220V 400W Servo Motor |
A axis control motor | Delta ASDA-B2 AC220V 400W Servo Motor |
Air control | SNS pneumatic comp |
Electric control | Omron ShiLin |
Precision worm and worm gear system | Jin Zhu special design 2 head precision drive worm gear and worm |
Cutter spacing | Six sets of controlled knives |
Automatic oiling system | BE2232 AC220 25W |
Precision guide rail and screw rod | Taiwan HIWIN |
Spindle center height | 200mm |
Axial stroke | 380mm |
Radial stroke | 350mm |
The tail against stroke | 300mm |
accuracy | 0.01mm |
input | Touch screen |
voltage | AC 380V 3Phase |
Atmospheric pressure | 0.5Mpa |
Weight | 880kg |
Machine size | 1730*1100*1480mm |
This machine applies to aluminum plate, copper plate, iron plate,
stainless steel palte and steel plate spinnning processing of
lighting, cooker, art and craft.
Mainly on mass production of brrel-shape, cone type, parabolic,
horn type, projectile product.
Packaging & Shipping
Packaging: the cnc metal spinning machine will be packaged in
wooden case or contain
Shipping: the cnc metal spinning machine will be shipped in 25 days
1. we can help you train your staff.
2. we will send engineer to help you install the machine, and guide
your staff on site until your qualified products.
3. the warranty period is one year, if you have any question in
using the machine, you can call us or send email, and we will solve
the problem for your asap.
As a professional manufacturer of the polishing machine, grinding
machine, CNC spinning machine and so on metal surface treatment
machine for more than years in China.
